The LS101 is designed for optical performance testing of various materials, including automotive film, explosion-proof film, architectural film, heat insulation film, and laminated glass.

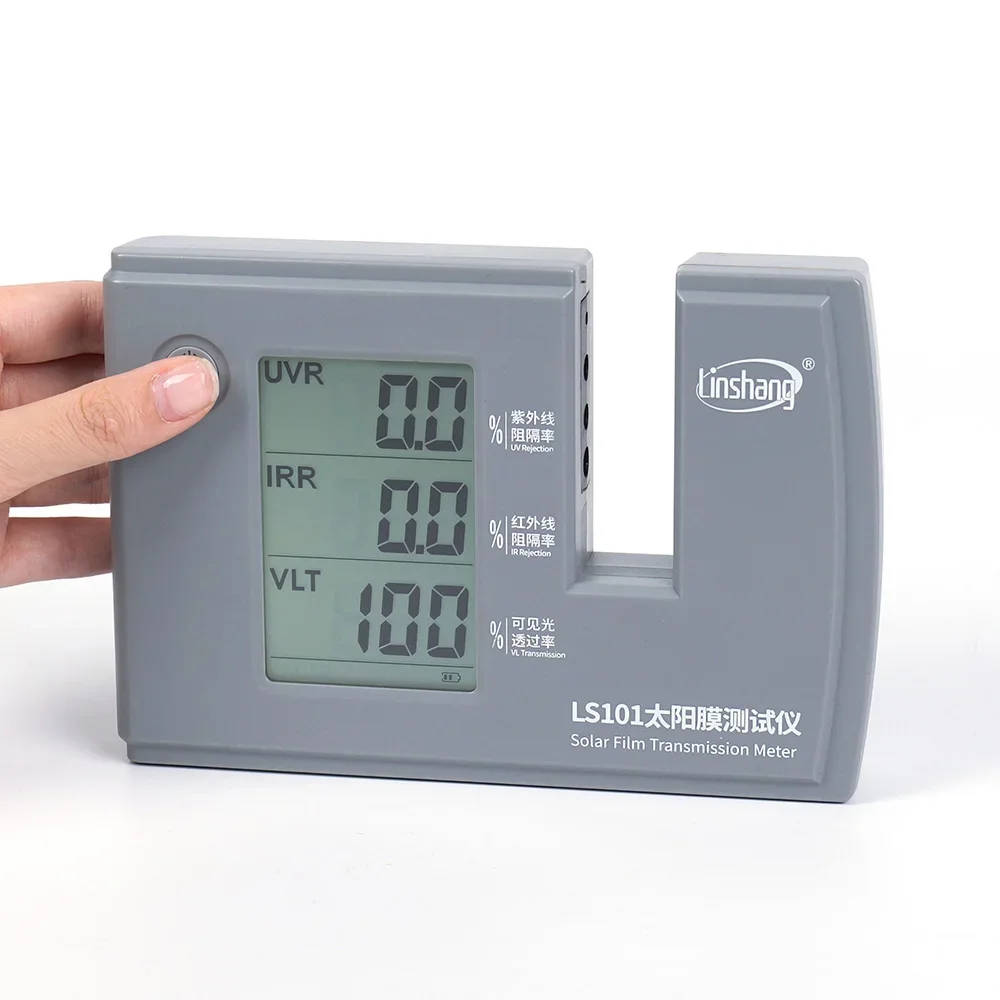

Key Features of the LS101 Window Tint Transmission Meter
Measure UV and Other Transmittance
Simultaneous measurement of infrared rejection, ultraviolet rejection, and visible light transmittance. 20mm test slot for measuring thick materials. High accuracy: ±2% for colorless and transparent materials.
Technical Specifications
| Specification | Value |
|---|---|
| Size | 175mm x 120mm x 30mm (L x W x H) |
| Test Slot | 20mm x 70mm (W x H) |
| Weight | 360g |
| Resolution | 0.1% |
| Accuracy | ±2% (colorless and transparent material) |
| UV Peak Wavelength | 365nm |
| Visible Light | 380-760nm, conforming to CIE photopic luminosity function |
| IR Peak Wavelength | 940nm |
| Power Supply | 4 AA alkaline batteries or 5V AC/DC power supply |
