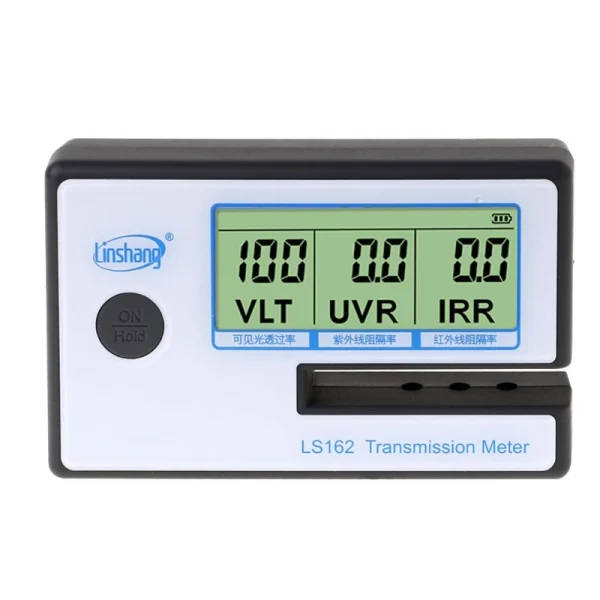

LS162 Window Tint Meter: Precise Transmission Testing for Solar Films and Glass
The LS162 Window Tint Meter is a versatile, handheld device designed to measure the transmission of UV, IR, and visible light through various materials, including window tints, solar films, and glass, ensuring compliance with safety standards and curriculum requirements.
Key Features:
- Testing slot accommodates samples up to 8mm thick, allowing for direct measurement of filmed glass and ensuring accurate results.
- Compact, portable design with ultra-low power consumption, powered by 4 x AAA alkaline batteries, making it ideal for field and laboratory use.
- Three-in-one functionality: measures UV rejection, IR rejection, and visible light transmittance, providing comprehensive data for analysis.
- Simple, rapid measurement: place the sample in the opening, and the device displays UV, VL, and IR transmission values simultaneously, streamlining the testing process.
Specifications:
| Size | 120mm x 75mm x 25mm (L x W x H) |
| Weight | 165g |
| Sample Thickness | <8mm |
| Resolution | 0.1% |
| Accuracy | ±2% |
| VL Peak Wavelength | 550nm |
| UV Peak Wavelength | 365nm |
| IR Peak Wavelength | 950nm |
Package Includes:
- 1 x LS162 Transmission Meter
- 1 x User Manual
- 1 x Certificate/Warranty Card
- 1 x Portable Bag
