M162 LCR Meter DIY Kit
A reliable and accurate tool for measuring capacitance, inductance, and resistance, perfect for DIY projects, electronics enthusiasts, and educational institutions. Ensuring lab safety and technical accuracy, this kit is aligned with curriculum requirements for electronics and physics education.
Key Features:
- Accurate measurements: Achieve approximately 1% accuracy without requiring special calibration, ensuring reliable results.
- Wide measurement ranges: Resistance (0.1 Ω – 20MΩ), Capacitance (1pF – 20mF), and Inductance (1uH – 20kH) to cater to diverse experimental needs.
- Automatic range selection and 2 measurement frequencies (1kHz and 100Hz) for flexibility in testing.
- 2.4-inch high-definition LCD display for clear and easy-to-read measurements.
- USB connectivity for charging, data transmission, and firmware upgrades, enhancing usability and future-proofing.
- Continuous data output through USB virtual serial port and 3.3V serial port for seamless data acquisition.
- Display freezing function for convenient data capture and recording.
Specifications:
| Model | M162 |
|---|---|
| Resistance Measurement Range | 0.1 Ω – 20MΩ |
| Capacitance Measurement Range | 1pF – 20mF |
| Inductance Measurement Range | 1uH – 20kH |
| Accuracy | Approximately 1% |
| Power Supply | USB / Battery (3.7V) |
Package Included:

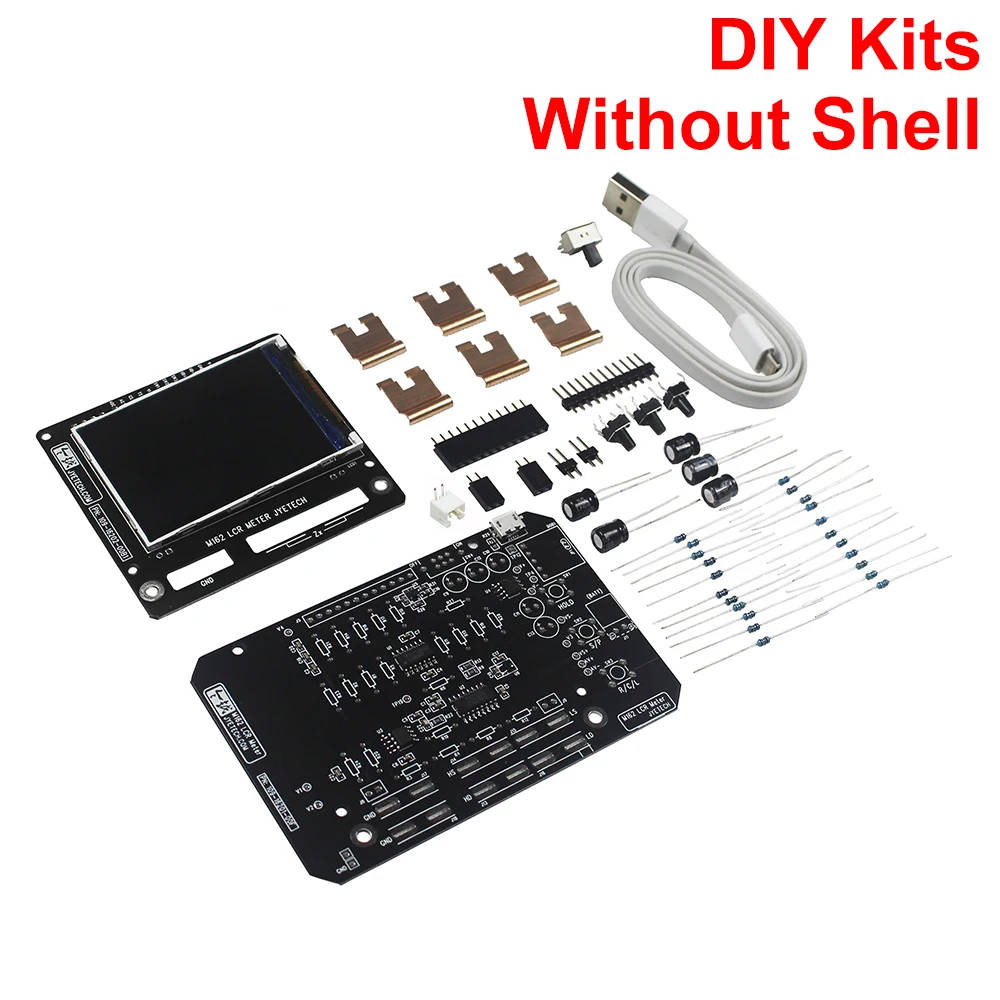

- Type A: Loose parts (M162 tester motherboard, micro charging cable, manual, and loose parts) for a DIY assembly experience.
- Type B: Finished product (M162 tester, micro charging cable, and manual) for immediate use.
- Type C: Loose parts with shell loose parts, offering a comprehensive DIY kit.
- Type D: Finished product with shell loose parts, combining the benefits of a ready-to-use product with additional components.
