Product Overview

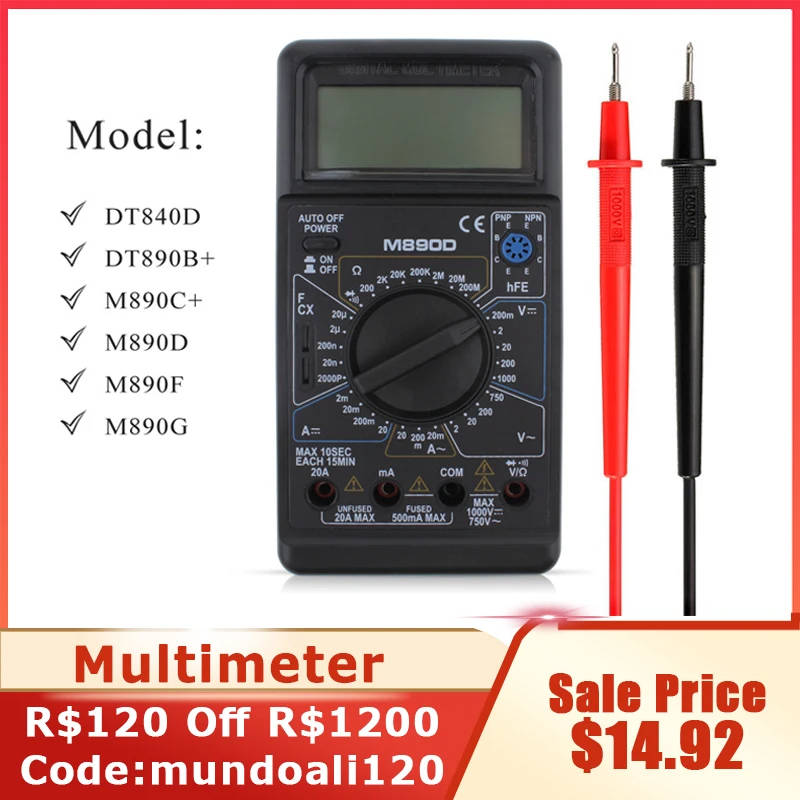

The M890D Digital Multimeter is a reliable testing tool for automotive and electrical applications, providing a comprehensive range of measurement functions, including AC/DC voltage, current, capacitance, and resistance.
Key Features
- Selectable measurement functions via a convenient rotary dial
- Compact and portable design with a stand-up bracket for hands-free operation
- High-quality test leads with robust insulation and durable cable sheathing
- Clear digital display for easy reading
Measurement Capabilities
| Measurement Type | Range |
|---|---|
| AC Current | 20mA / 200mA / 20A |
| DC Voltage | 200mV / 2V / 20V / 200V / 1000V |
| DC Current | 2mA / 20mA / 200mA / 20A |
| Capacitance | 2000pF – 20μF |
| Resistance | 200Ω – 200MΩ |
Product Specifications
- Power: 9V battery (6F22)
- Material: ABS
- Dimensions: 17.0 x 9.0 x 3.0 cm
- Weight: 285g
Included Accessories
- 1 x M890D Digital Multimeter
- 2 x Test Leads
- 1 x English Instruction Manual
