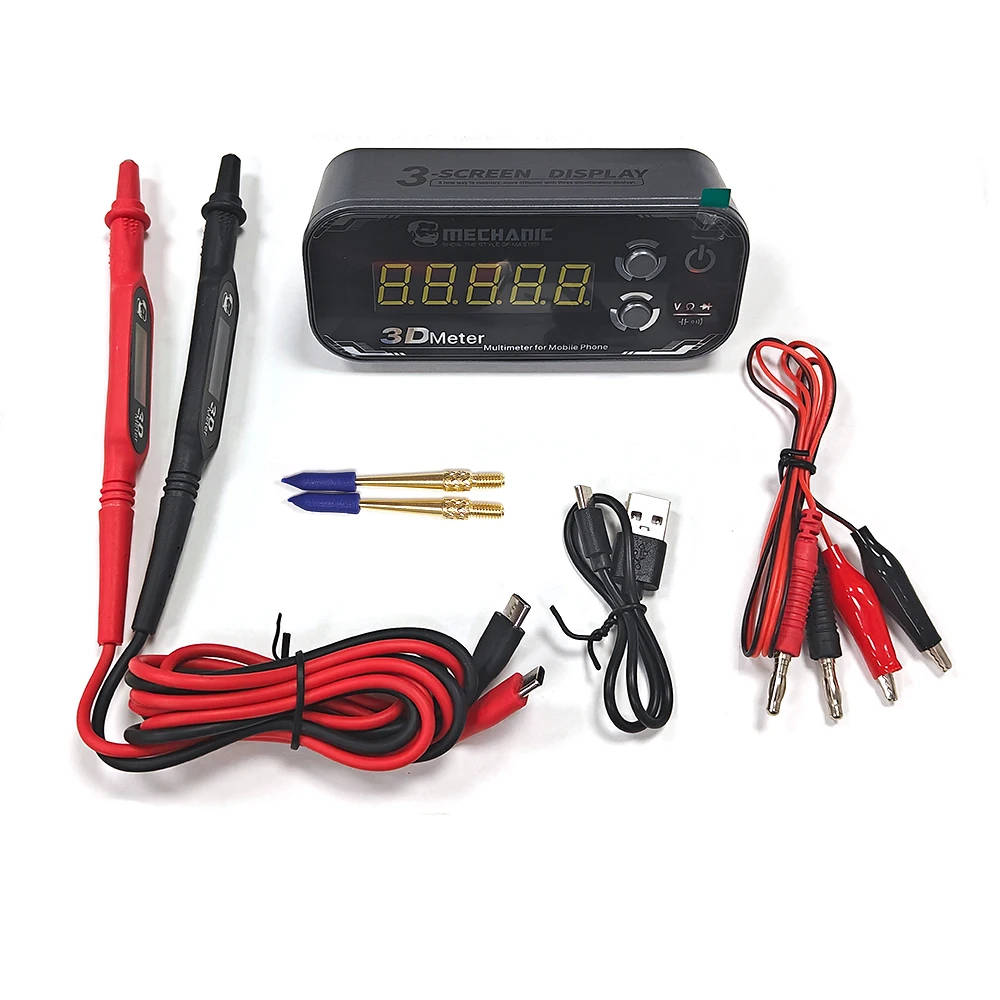

MECHANIC Detective 3.0 Multimeter: Advanced Measurement for Mobile Phone Repair
The MECHANIC Detective 3.0 Multimeter is a high-precision 3D meter designed for mobile phone repair and diagnostics, featuring a unique triple-screen display that synchronises data across the multimeter and probe screens, enhancing usability and reducing the need to constantly look away from the work area.
Key Features
- Triple-Screen Display: Enhances usability by displaying data simultaneously on the multimeter and probe screens.
- High Precision: Offers accurate measurements of voltage, resistance, capacitance, and PN junctions with ±0.1% accuracy.
- Long Battery Life: Features a 2000mAh battery with an energy-saving auto-off function for extended use.
- Ideal for Smartphone Diagnostics: Provides wide measurement ranges, making it perfect for mobile phone repair and diagnostics.
Specifications
| Brand Name | MECHANIC |
| Name | Detective 3.0 Multimeter |
| Model | 3D Meter |
| Size | 125*37*55mm |
| Net Weight | 260g |
| Packing | 211.5*122*50mm |
| Gross Weight | 460g |
Parameters
| Resolution | 0.0001 |
| Voltage Range | -24.000V ~ +24.000V (±0.1% +5 digits) |
| PN Junction | 0.0000–1.9999 (±0.1% +5 digits) |
| Resistance | 0.0000Ω–9.9999MΩ (±0.8% +10 digits) |
| Capacitance | 0.000μF–9.999mF (±4.0% +10 digits) |
| Power | 2000mAh Li-ion (3.7V), 15-min auto shutdown |
| Compliance | GB/T 13978-2008 |
Important Safety Information
WARNING: This multimeter is designed for use with low-voltage electronic equipment below DC24V. Using it beyond this range may cause damage or pose safety risks.
