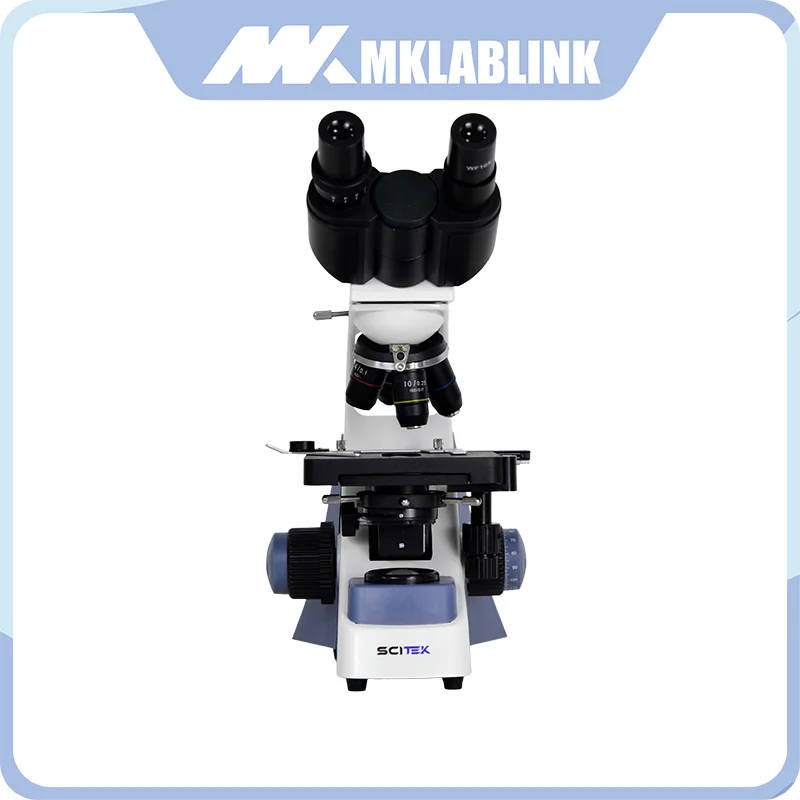

MKM-B500E Biological Microscope with Binocular Head and Double-Layer Mechanical Stage

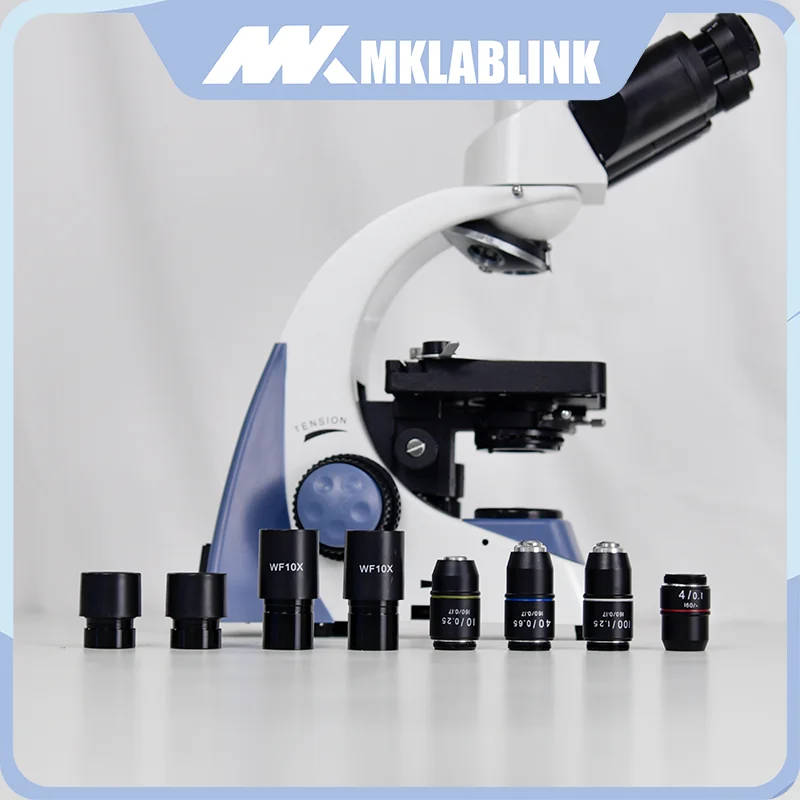

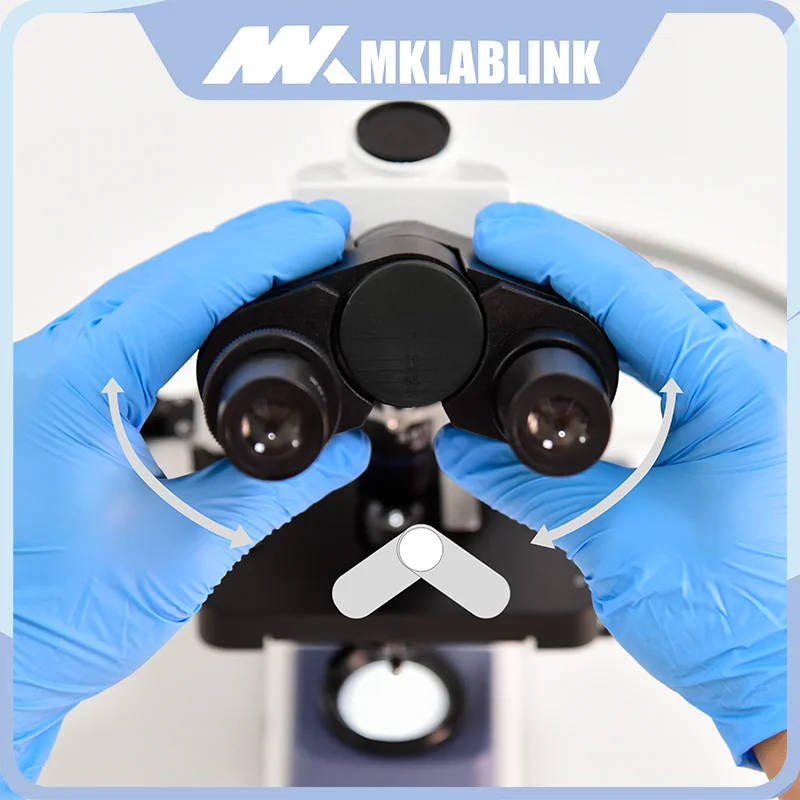

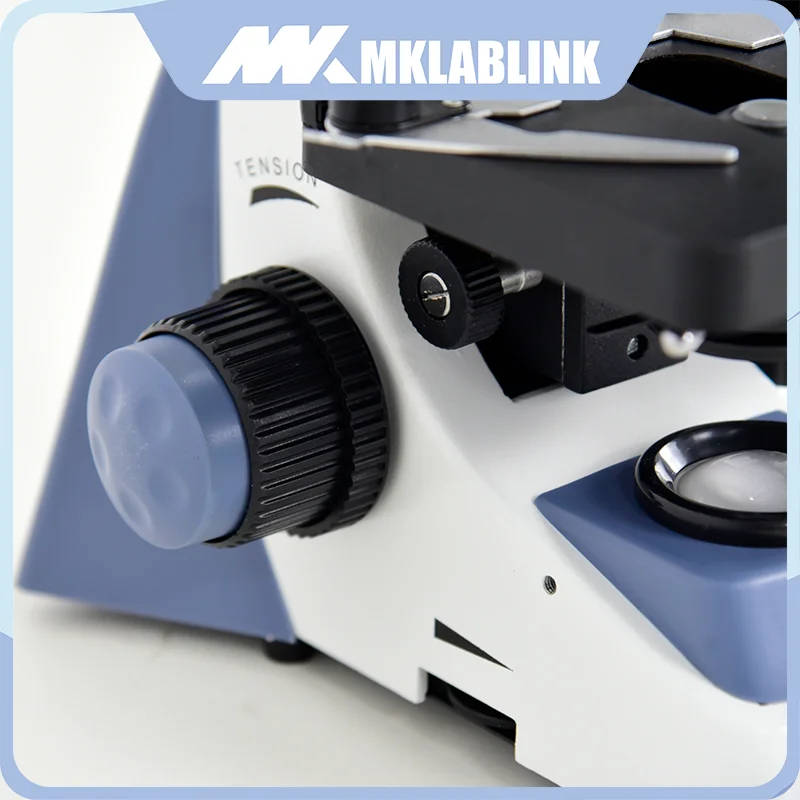

The MKM-B500E biological microscope is a high-quality, precision instrument designed to meet the needs of UK educational institutions and research laboratories. Featuring a compensation-free binocular head inclined at 30° and rotatable 360°, this microscope provides comfortable and versatile viewing. The wide field eyepiece (WF10X) and achromatic objectives (4X, 10X, 40X(Spring), 100X(Spring, Oil)) ensure clear and detailed observations. The double-layer mechanical stage (120x125mm) allows for precise specimen handling. The Abbe condenser (NA=1.25) with iris diaphragm and filter, combined with LED (1W) illumination (220V or 110V), provides optimal lighting conditions. The coaxial coarse and fine adjustment focusing system offers a 30mm focusing range and 0.002mm focusing interval, ensuring accurate and smooth focusing. This microscope is ideal for teaching and research applications, aligning with UK curriculum requirements and promoting lab efficiency. Technical specifications include: Viewing Head: Compensation Free, Binocular Head Inclined at 30°, 360° rotatable; Eyepiece: Wide Field Eyepiece: WF10X, (WF16X Optional); Achromatic Objectives: 4X, 10X, 40X(Spring), 100X(Spring, Oil); Stage: Double Layer Mechanical Stage Size 120x125mm; Condenser: Abbe NA=1.25 with Iris Diaphragm & Filter; Illumination: LED(1W) Lamp 220V or 110V; Focusing: Coaxial Coarse and Fine Adjustment, Focusing Range 30mm, Focusing Interval 0.002mm; Power Supply: AC220/110V±10%, 50/60HZ.
