Mortar Strength Testing Equipment

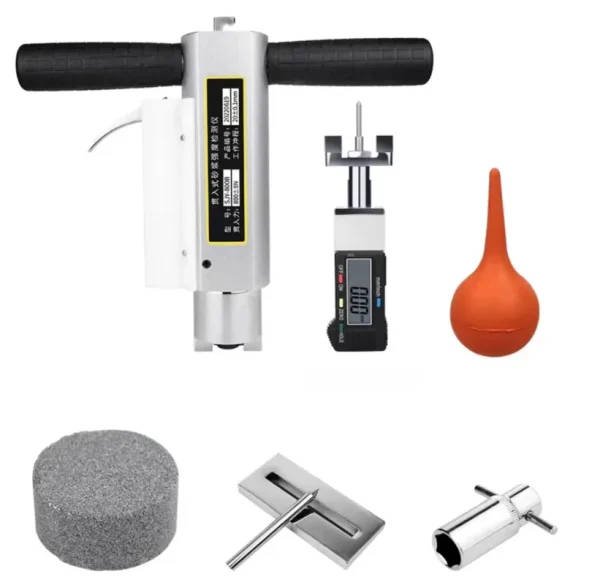

Our Mortar Penetration Meter is designed to accurately test the strength of mortar and masonry structures, providing a non-destructive evaluation method.
Key Features
- Leverages lever force to drive the nail, ensuring a straightforward operation.
- High accuracy in determining compressive strength through penetration depth measurement.
- Adheres to JGJ/T136-2001 standards for technical regulations on penetration method for compressive strength of masonry mortar.
Technical Details
| Penetration Force | 800±8N |
| Working Stroke | 20±0.1mm |
| Nail Length | 40mm |
| Working Environment | -4-40℃ |
Applications
The Penetrating Concrete Strength Tester is ideal for construction sites and laboratories to test the compressive strength of masonry mortar, supporting quality control and assurance.
