Product Specifications
| Parameter | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| pH | 0.00-14.00 pH | 0.01 pH | ±0.1 pH |
| ORP | -1999-1999 mV | 1 mV | ±5 mV |
| Temperature | 0-50°C | 0.1°C | ±1°C |
Key Features
- Automatic temperature compensation
- Manual calibration at one point through trimmer
- Backlight display for ease of use
- Compact and lightweight design
Operation and Calibration
Measurement Procedure
- Remove protective cap and turn on the meter
- Rinse electrode with distilled water and dry
- Immerse electrode in sample solution and stir gently
- Press ‘pH/ORP’ button to select measurement mode
- Press ‘C/F’ button to switch between Celsius and Fahrenheit
Calibration
The meter should be calibrated regularly for optimal performance. Follow the step-by-step guide provided to calibrate the pH and ORP ranges.

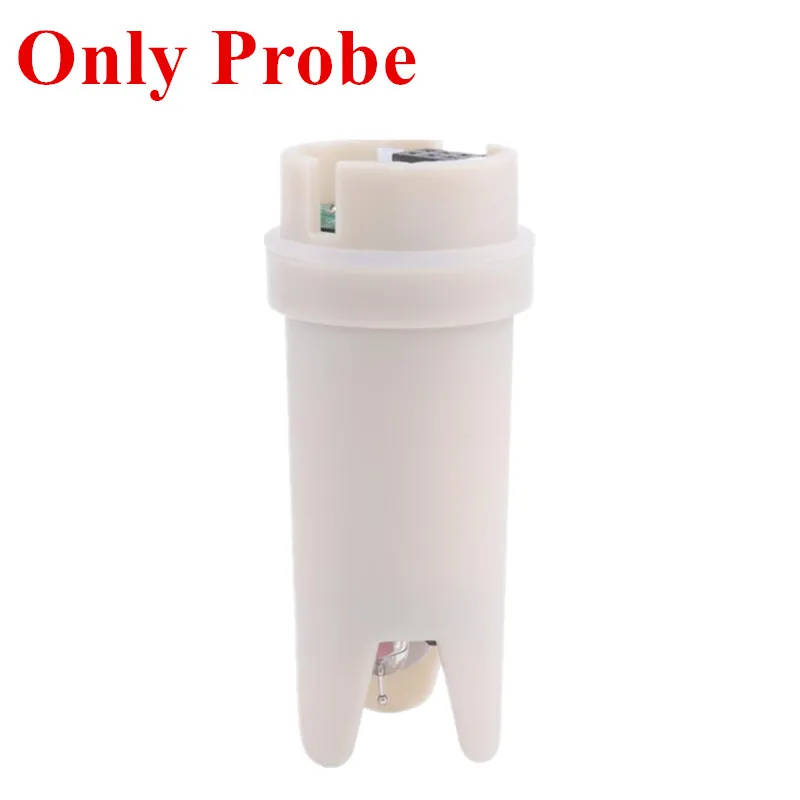

Electrode Replacement
The electrode is replaceable. Follow the instructions provided to replace the electrode and ensure proper gasket placement.
