Advanced Water Quality Monitoring Solution
Our Multi-parameter pH TDS EC Meter Conductivity Controller is designed for precise water quality monitoring, offering a comprehensive solution for various industries.
Key Features
- Directly switchable to pH/ORP and EC/TDS measurement modes

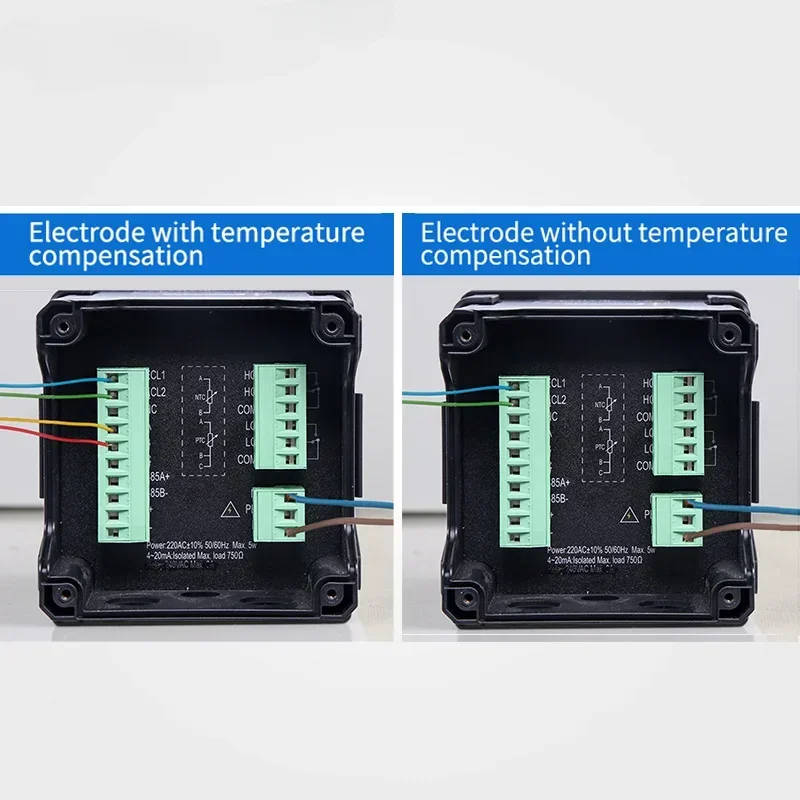

- Automatic temperature compensation for accurate readings
- High and low alarm with relay function for real-time monitoring
- Backlit LCD display with adjustable brightness and contrast
- Lockouts to prevent over-dosing and ensure safe operation
Technical Specifications
| Parameter | pH Controller | EC Controller |
|---|---|---|
| Measuring Range | 0～14pH | 0.02～20000uS/cm |
| Accuracy | ±0.02pH | ±1%FS |
| Resolution | 0.01pH | 0.01uS/cm |
| Calibration | Three-point calibration (4.00/6.86/9.18pH, 4.01/7.00/10.01pH) | Two-point calibration (84.0μS/cm, 1413μS/cm, 12.88mS/cm) |
Applications
Our pH EC controller is widely used in hydroponics, thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, and tap water industries for continuous monitoring of pH/ORP and EC/TDS values and temperature.
