Advanced Features

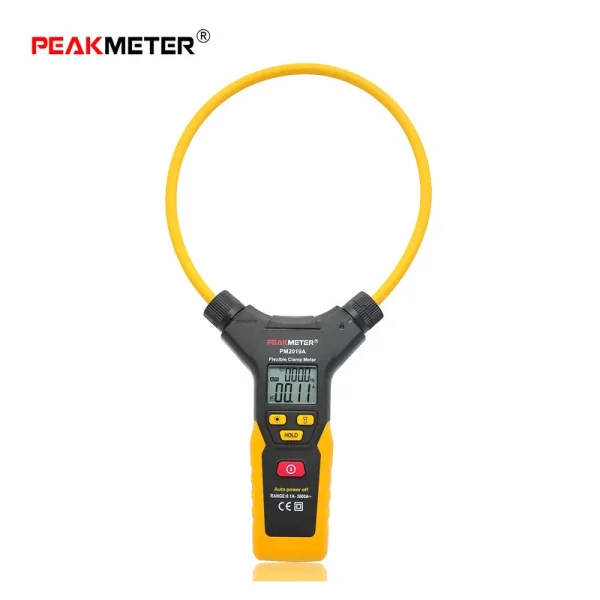

This innovative AC digital flexible clamp meter measures current up to 3000A, breaking through traditional clamp meter limitations. It simultaneously displays current and frequency, eliminating the need for gear conversion and reducing the risk of damage from incorrect operation.
Key Specifications
- AC Current Measurement: 100mA to 3000A
- Accuracy: ± (3% reading + 5)
- Display: 6000 counts
- Frequency Measurement: 40Hz to 500Hz
- Data Hold and Backlight: Yes
- Jaw Size: 75mm
- Power Supply: 3 x 1.5V AAA batteries (not included)
- Weight: 200g
- Dimensions: 120 x 350 x 25mm
Safety and Compliance
This product meets CAT III 1000V safety standards and is CE and ETL certified, ensuring a high level of safety for laboratory and field use.
| Measurement Range | Accuracy |
|---|---|
| 100mA / 30A / 300A / 3000A | ± (3% reading + 5) |
