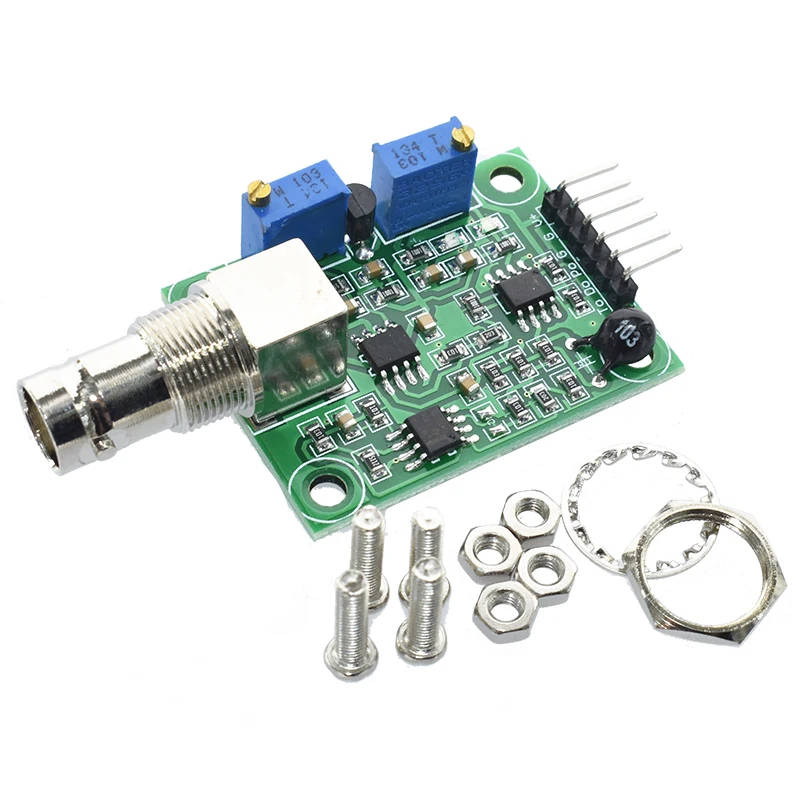

pH Sensor Module and Electrode Probe
This laboratory-grade pH sensor module and electrode probe combination is designed for accurate and reliable pH measurement in various educational and research settings.
Key Features
- Detection range: pH 0-14
- Detection temperature range: 0-80°C
- Response time: ≤5 seconds
- Settling time: ≤60 seconds
- Operating voltage: 5 ± 0.2V (AC/DC)
- Working current: 5-10mA
- Output: Analog voltage signal
Technical Specifications
| Parameter | Value |
|---|---|
| Heating Voltage | 5 ± 0.2V (AC/DC) |
| Working Current | 5-10mA |
| Detectable Concentration Range | pH 0-14 |
| Detection Temperature Range | 0-80°C |
| Response Time | ≤5 seconds |
| Settling Time | ≤60 seconds |
| Component Power | ≤0.5W |
| Working Temperature | -10 to 50°C (nominal temperature 20°C) |
| Humidity | 95% RH (nominal humidity 65% RH) |
| Module Size | 42mm × 32mm × 20mm |
Compatibility and Safety
The module is designed to be compatible with Arduino, making it suitable for educational projects and research applications. It is essential to follow proper laboratory safety protocols when handling the electrode probe and using the module.
