Precise pH Measurement for Laboratory and Industrial Applications

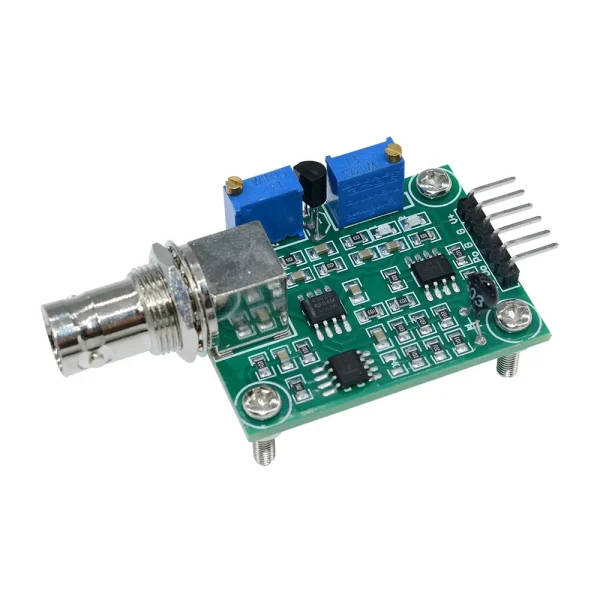

This pH sensor module is designed for accurate liquid pH measurement, featuring a BNC electrode probe and compatibility with Arduino.
Key Features:
- Detectable pH range: 0-14
- Detection temperature range: 0-80°C
- Response time: ≤5 seconds
- Settling time: ≤60 seconds
- Operating voltage: 5 ± 0.2V (AC/DC)
- Working current: 5-10mA
- Component power: ≤0.5W
Technical Specifications:
| Parameter | Value |
|---|---|
| Working temperature | -10 ~ 50°C (nominal temperature 20°C) |
| Humidity | 95% RH (nominal humidity 65% RH) |
| Module size | 42mm x 32mm x 20mm |
| Output | Analog voltage signal output |
Included in the Package:
- 1 x pH Sensor Module
- 1 x BNC pH Electrode Probe
