Product Overview

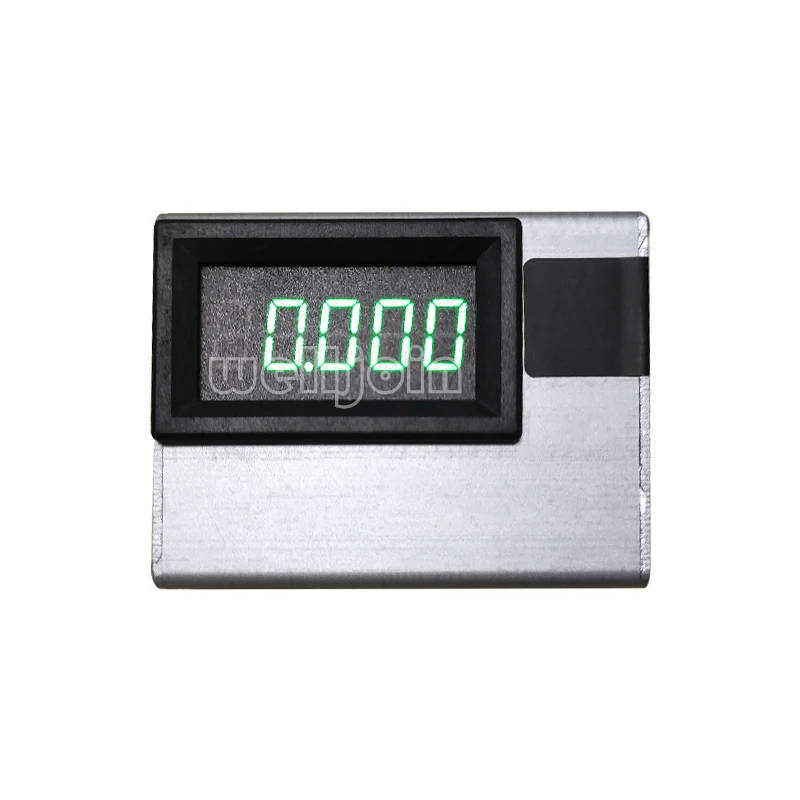

The HWLPM Mini10W is a portable, all-in-one laser power testing tool, designed for ease of use and portability. It features a built-in rechargeable battery, wide spectrum, high sensitivity, and fast response, making it suitable for a wide range of applications.
Key Features
- Measurement range: 0-10W
- Wavelength range: 200-10600nm
- Probe effective range: φ13mm
- Measurement accuracy: ±2%
- Resolution: 1mW
- Rechargeable battery with >6 hours standby time
Usage Guidelines
To ensure accurate measurements, align the laser beam parallel to the detection port. Avoid focusing the laser onto the probe, as this may cause damage.
Specifications
| Parameter | Value |
|---|---|
| Measurement objects | Handheld lasers, high-power laser pointers, laser pens, laser single tubes, and modules |
| Measuring wavelength range | 200nm~10600nm |
| Range | 0-10.00W |
| Saturation time | 1~5 seconds |
| Power supply | Rechargeable, 5V 1A cell phone charger compatible |
Package Included
- Handheld Laser Power Meter x1
