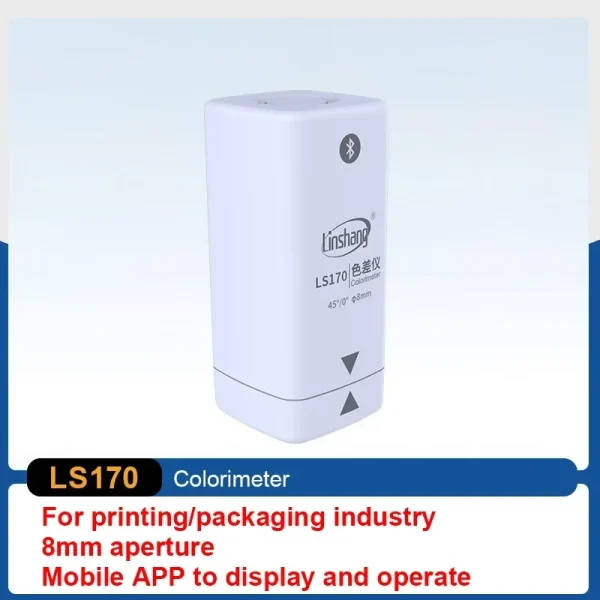

LS170 Colorimeter for Precise Color Measurement
The LS170 is a high-precision colorimeter designed for color measurement and color difference comparison in the printing and packaging industries. It adopts a 45°/0° illumination geometry and is equipped with a mobile phone APP for quick color measurement and color difference comparison.
Key Features
- 45°/0° optical geometry and 8mm measuring aperture suitable for packaging and printing industry
- Easy color difference measurement with simultaneous display of values
- Quick color code matching with built-in electronic color charts
- Import and export color data via email and social media
- Seven color spaces to choose from, including Lab, RGB, and CMYK
Specifications
| Illumination geometry | 45/0 (45° annular illumination, 0° viewing angle) |
| Illumination light source | Full spectrum LED light source |
| Measuring aperture | 8mm |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | About 1s |
| Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Repeatability | Standard deviation ΔE*ab ≤ 0.03 |
Applications
The LS170 is ideal for printing, packaging, and other industries requiring precise color measurement. Its compact design and Bluetooth connectivity make it easy to use and transport.
