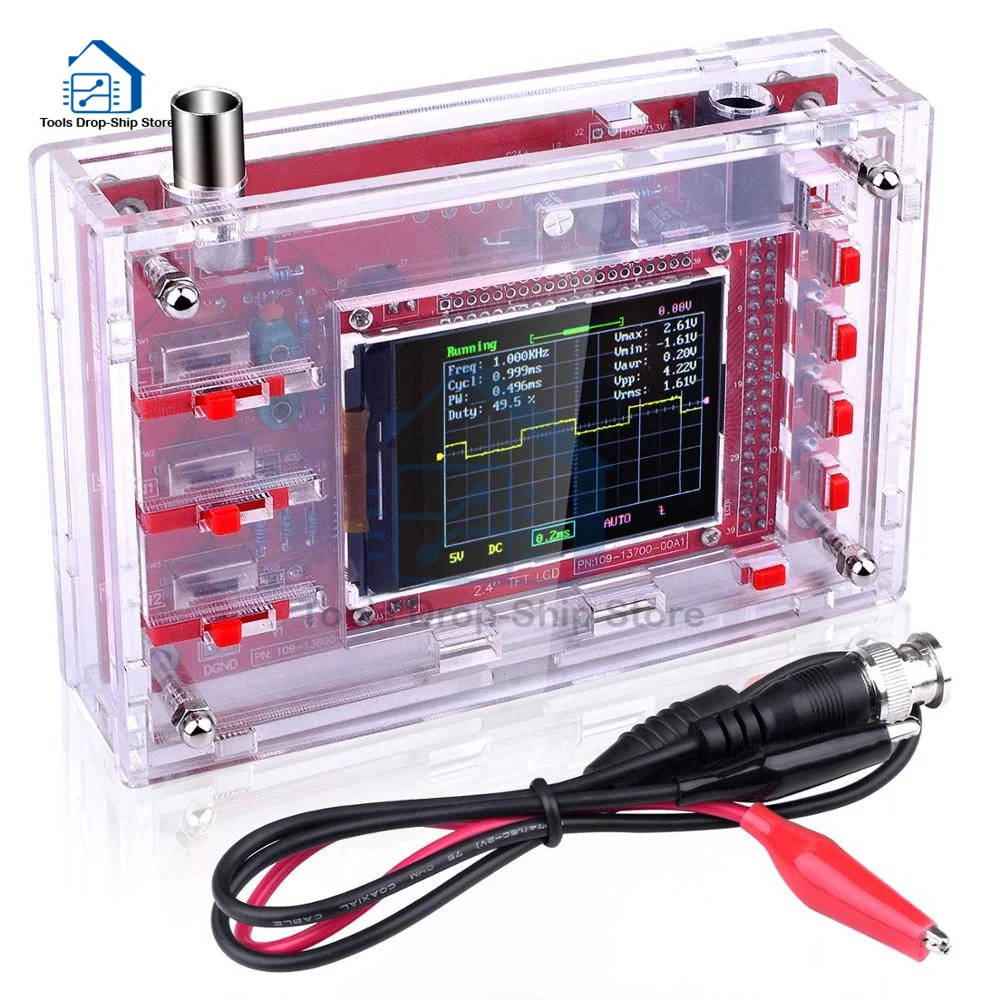

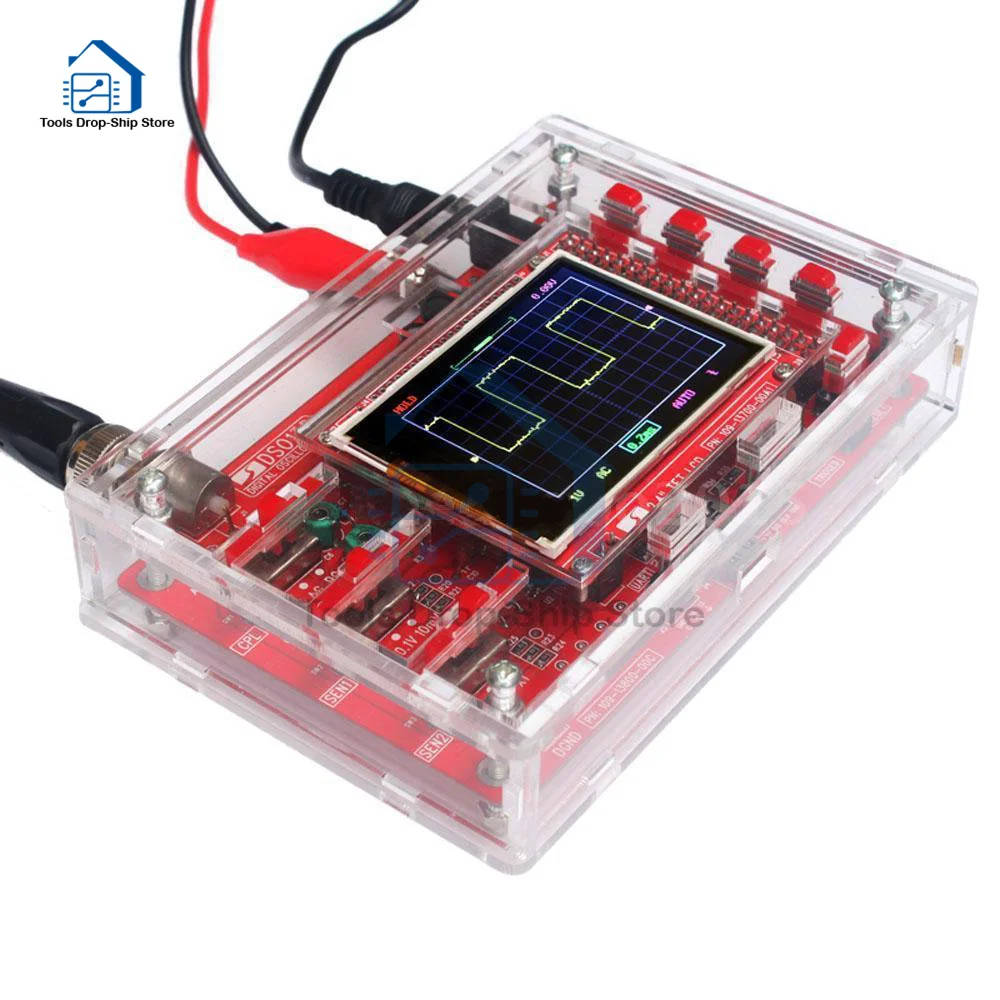

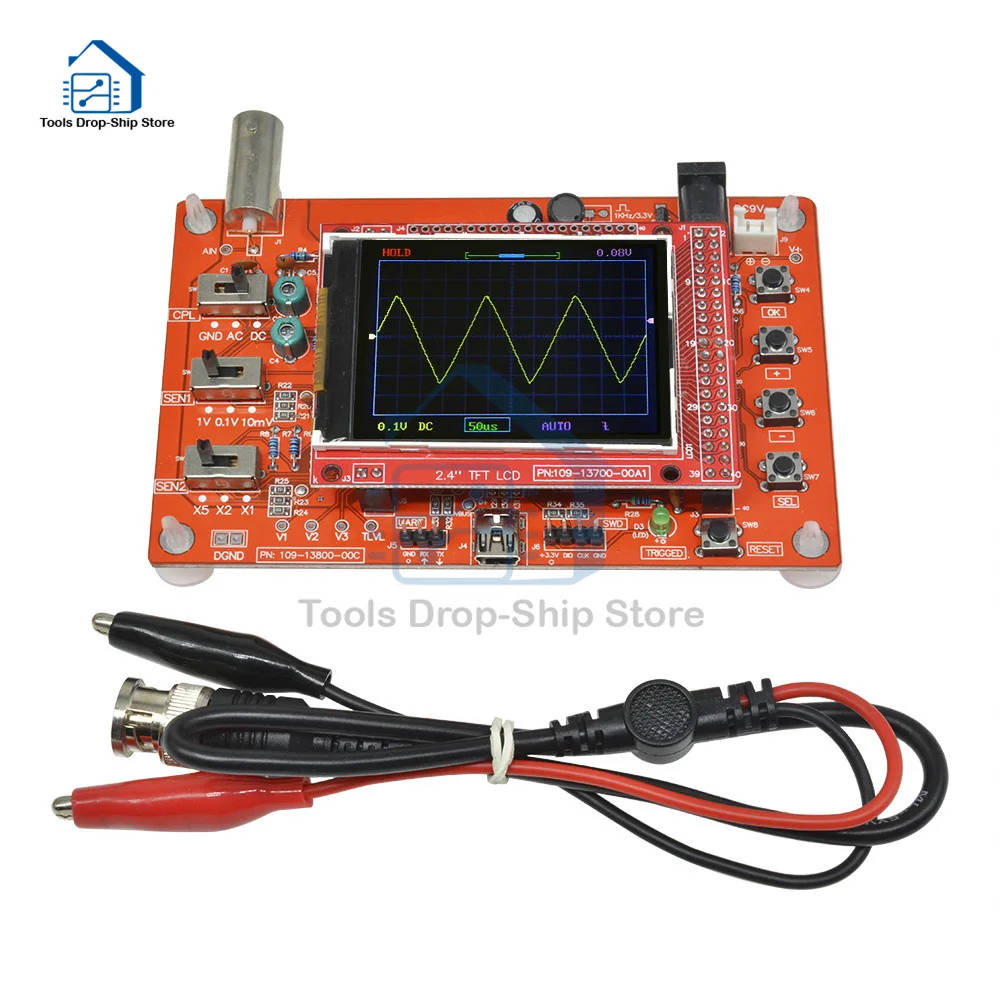

This portable digital oscilloscope, similar to a DSO 138 DIY oscilloscope kit, features a 2.4″ TFT LCD display and comes with an alligator clip probe for easy connections. It’s perfect for electronics training, offering a high success rate with detailed schematics, production guidance, and troubleshooting methods. The kit uses an ARM Cortex-M3 processor and can be adapted for various applications such as millivoltmeters or data loggers. With a real-time sampling rate of 1Msps and an analog bandwidth of 0 – 200KHz, it provides accurate waveform analysis, similar to what you’d expect from a compact digital multimeter. The oscilloscope includes features like adjustable vertical displacement, multiple coupling modes, and a HOLD function for freezing waveforms, making it a versatile probe electrical tester. Whether you’re using it as a clip on probe with a test signal generator or as a standalone electronic signal generator, this device is ideal for students and hobbyists looking to enhance their electronics skills with a DSO138 oscilloscope kit.
- Key features include a compact design, alligator probe test clip, and real-time sampling for accurate analysis.
- Perfect for use with an electronic signal generator or as a handheld digital multimeter for field measurements.
- Adaptable for various applications, including education and hobby projects.
