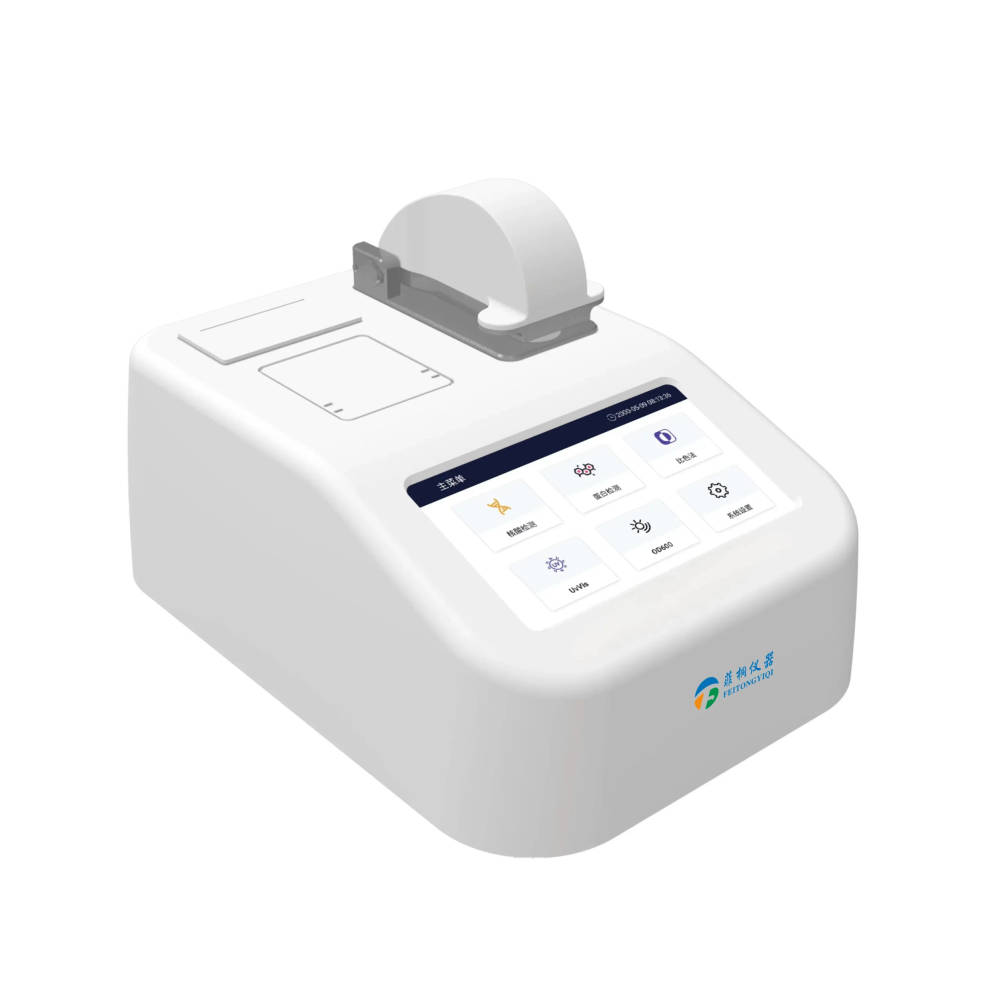

This portable laboratory UV-Vis micro-spectrophotometer is designed for precise measurement of absorbance and concentration of samples. It operates within a wavelength range of 190-850nm, making it suitable for various laboratory applications.
Key Features of the Single Beam Spectrophotometer
Measurement Capabilities
The device measures absorbance and concentration with high precision, featuring a sample volume requirement of 0.5-2μl and optical paths of 0.03mm, 0.05mm, 0.2mm, and 1.0mm.
Technical Specifications
| Specification | Value |
|---|---|
| Wavelength range | 190-850nm |
| Absorbance accuracy | 0.003Abs (0.2mm optical path) |
| Absorbance precision | ±1% (7.332Abs at 260nm) |
| Range of absorbance | 0.04 – 300A |
| Scope of nucleic acid testing | 2-15000ng/μl (dsDNA) |
| Light source | Xenon flashing lamp |
| Sample base material | Quartz fiber optic and high hardness aluminum |
| Power adapter | 24V DC |
| Power consumption | 25W |
| Power consumption during standby | 5W |
| Dimensions (W×D×H) | 200×260×165mm |
| Weight | 5KG |
| Software operation platform | Android system |
| Data output method | USB |
