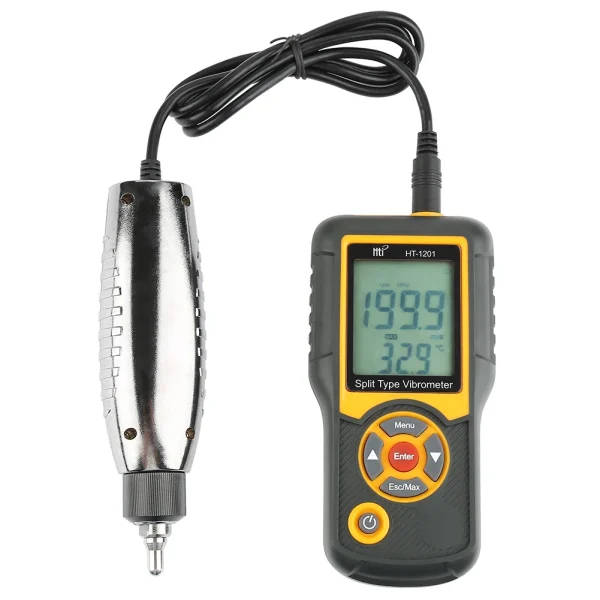

Precision Digital Vibration Meter
This advanced vibration meter is designed for precise measurement of vibration in mechanical equipment. It features a piezoelectric acceleration sensor and is suitable for various industries, including mechanical manufacturing, electric power, chemical engineering, aerospace, and aviation.
Key Features
- Wide measurement range for acceleration: 0.1-199.9m/s² (peak)
- Measures vibration speed, acceleration, and displacement
- Environment temperature measurement in Celsius and Fahrenheit
- LCD display for direct measurement results and conditions
Technical Specifications
| Parameter | Range | Accuracy |
|---|---|---|
| Acceleration | 0.1-199.9m/s² (peak) | ±(5%+2 digits) |
| Speed | 0.1-199.9mm/s (RMS) | ±(5%+2 digits) |
| Displacement | 0.001-1.999mm (RMS) | ±(5%+2 digits) |
| Temperature | 0°C – 60°C | ±2°C |
Safety Precautions
- Avoid using the device in environments with explosive gas or steam.
- Be cautious when measuring near rotating machinery parts.
- Clean the instrument with a dry cloth; avoid corrosive detergents.
