SM206 Solar Radiation Meter
The SM206 is a high-accuracy digital device designed for precise sunlight radiation measurement, ideal for solar energy, agriculture, and meteorological research.
Key Benefits
- Switch between W/m² and Btu/(ft²-h) to suit different applications.
- Data hold and maximum value hold functions for efficient measurement.
- No adjustments needed for accurate readings.
- Long-term stability ensures consistent results.
- Perfect for solar radiation studies, educational experiments, and field measurements.
Detailed Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | SM206 |
| Measurement Resolution | 0.1W/m², 0.1Btu/(ft²-h) |
| Range Accuracy | ±(10% of reading + 2 digits) |
| Temperature Coefficient | ±0.38W/m²/℃ (±0.12Btu/(ft²-h)/℃) at 25°C |
| Display Type | 4-1/2 digit LCD, up to 19999 counts |
| Measurement Span | 0.1-1999.9W/m², 0.1-1999.9Btu/(ft²-h) |
| Sampling Interval | 2.5 seconds |
| Environmental Operating Conditions | 0~40℃, Relative Humidity < 80% |
| Storage Conditions | -10~50℃, RH < 80% |
| Power Supply | 9V (battery not supplied) |
| Dimensions | 132 x 60 x 38mm |
| Approximate Weight | 325 grams |
Package Includes

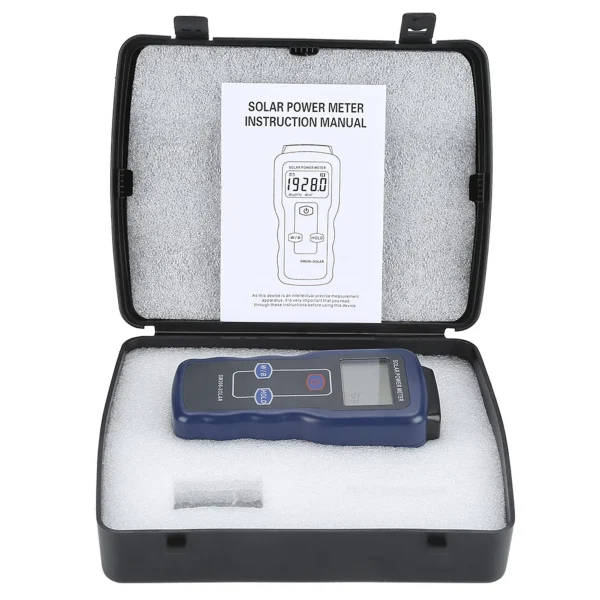

- 1 x SM206 Solar Power Meter
- 1 x Instruction Manual
- 1 x Protective Packaging
