Trinocular Microscope 4K 48MP HDMI USB

Name: Trinocular Microscope 4K 48MP HDMI USB
SKU: 1005005336758984
Availability: InStock

No reviews yet

(0 reviews)

Price range: £324.99 through £485.99 Inc VAT

& Free Delivery

This 4K 48MP Trinocular Microscope features USB, HDMI, and VGA outputs for flexible connectivity. Ideal for industrial use, phone soldering, and PCB repair with 7x-50x magnification and 110mm working distance.

Color

Clear

- +

Product ID: 49962

Delivery options shown at checkout.

Buying for a lab, school or business? Need a written quote or invoice? Add your required quantity to the basket, then choose Request quote & email invoice. View basket
A customer account is required for quote requests.

The 4K 48MP HDMI USB Trinocular Microscope is designed for precision tasks such as phone soldering and PCB repair. It offers a magnification range of 7x-50x and a working distance of 110mm, providing clear and detailed images.

Key Features of the Trinocular Microscope

High Definition Imaging

Equipped with a high-resolution 48MP Panasonic sensor for detailed imaging.

Technical Specifications

Specification	Value
Magnification	7x-50x
Working Distance	110mm

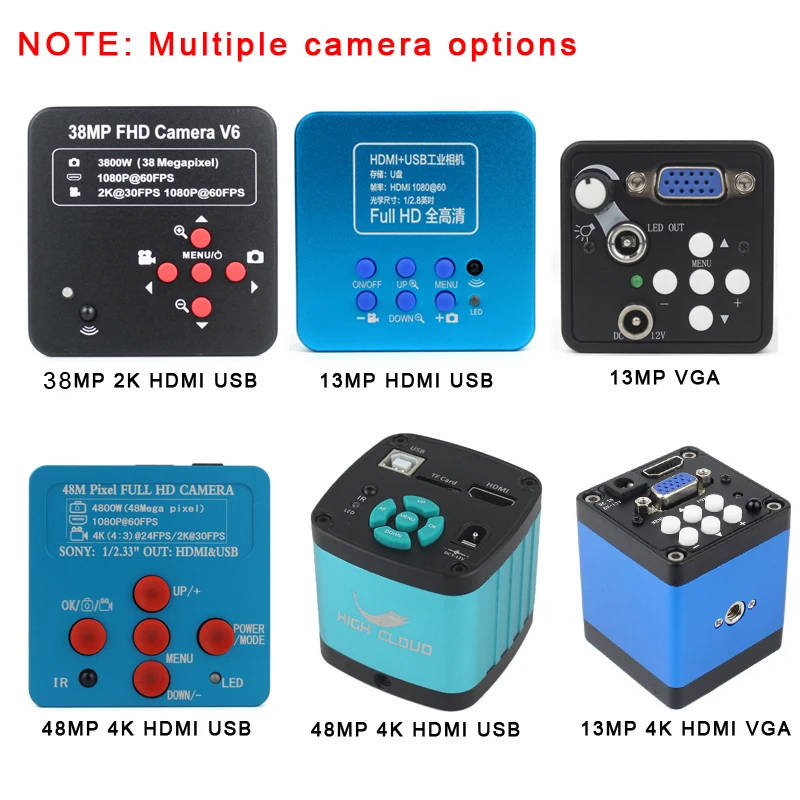

Camera Output	VGA HDMI USB

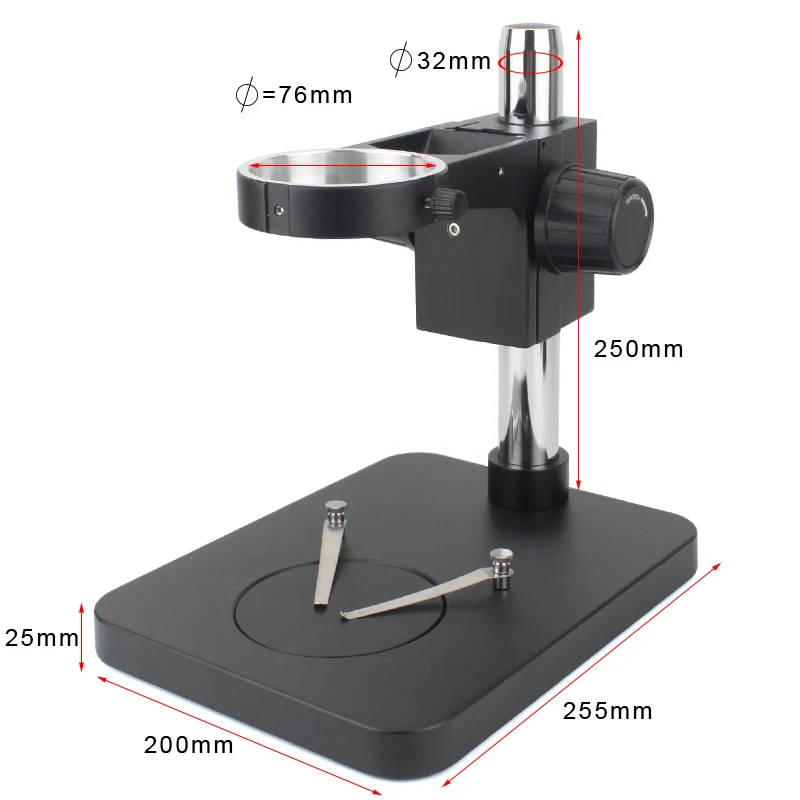

Microscope Stand Size	200mm x 255mm x 250mm
Material	Plastic

Magnification Ratio	500X & Under
Drawtube	Trinocular
Certification	CE
Material	Plastic
Origin	Mainland China
Model Number	Model Number: IC BGA CPU Chip Watch Jewelry Lab Industrial Trinocular
Brand Name	HIGH CLOUD
Theory	Stereo Microscope
Features	High Definition,Digital,Handheld,PORTABLE
Super Eyepie	WF10X/22mm large field
Working Distance	110mm
Camera Output	VGA HDMI USB
HDMI scale	4:3 16:9 16:10 screen
IR remote contro	Support
Microscope Stand Size	200mm x 255mm x 250mm
Magnification	7x-50x
Objective Lens	0.5X 2.0X 0.7X 1X Auxilliary Objective Lens
Picture Pixel	Panasonic 48MP MegaPixel CMOS Sensor
HDMI resoltion	1920*1080p 60FPS 2K 30FPS
USB2.0(Drive free)	19201080@30FPS 1280720@30FPS 640*480@30FPS
Illuminator	56 pcs LED Ring Light
Imaging	3D

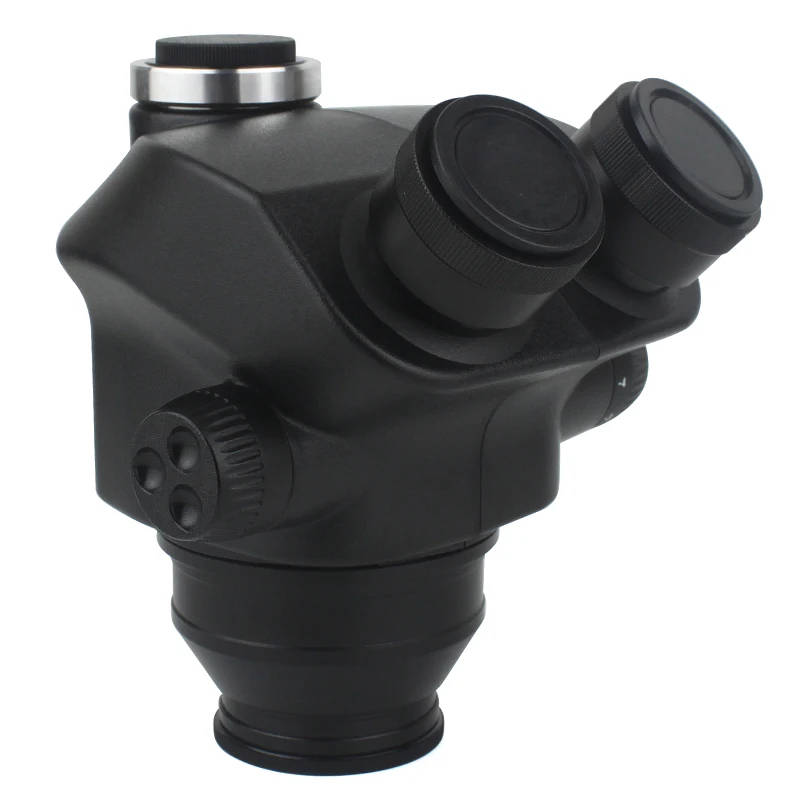

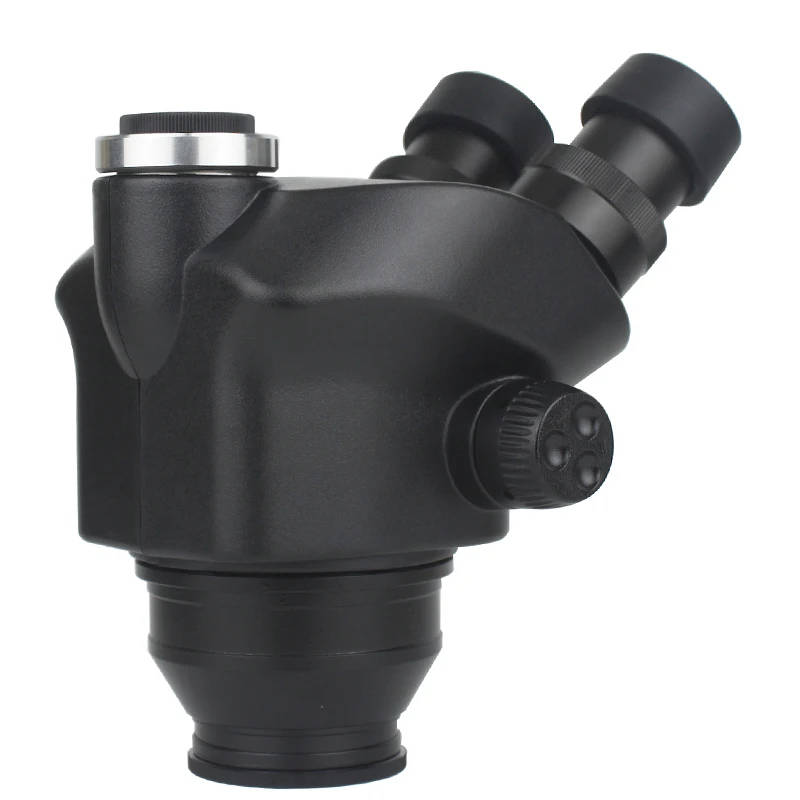

Accessories	Microscope Head
Apply	Industrial Laboratory Scientific Research Teaching
1 For	Phone Watch Jewelry Observation
2 For	Phone Capacitor IC BGA CPU SMD Chip Flat Cable Soldering
3 For	Smart Phone Mechanical Watch Jewelry Accessories
