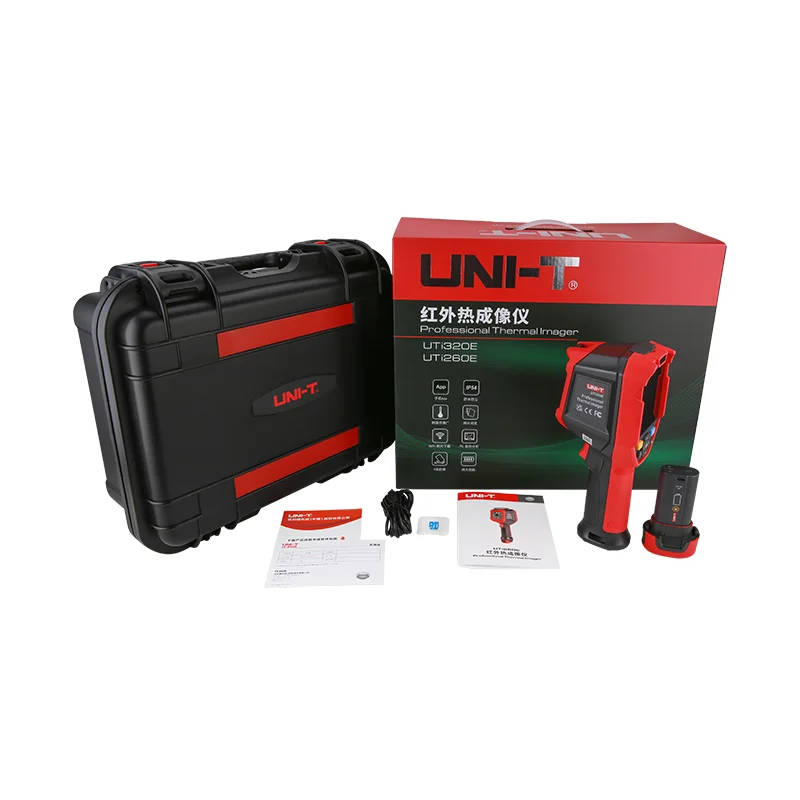

UNI-T UTi320E / UTi260E Handheld Infrared Thermal Imager Camera
The UNI-T UTi320E and UTi260E are handheld thermal imaging cameras designed for precise temperature measurement and analysis. Featuring high-resolution infrared sensors and advanced functionality, these devices are ideal for a variety of applications, including predictive maintenance, building inspection, and research.
Key Features
- High-resolution thermal imaging: 320×240 (UTi320E) or 256×192 (UTi260E) IR resolution
- Advanced temperature measurement: -40°C to 400°C (UTi320E) or -20°C to 550°C (UTi260E) temperature range
- ±2°C or ±2% temperature measurement accuracy
- Visible light fusion: 2 million pixel visible light camera
- Digital zoom: 2x and 4x zoom capabilities
- Isotherm function for temperature analysis
- Customizable image storage and file library
- High and low temperature limit alarm
- Fast hot and cold spot tracking
- Customizable temperature measurement (point, rectangle, circle, line)
- IP54 protection rating and 2m drop protection
Specifications
| Model | UTi260E | UTi320E |
| IR Resolution | 256×192 | 320×240 |
| Frame Rate | 25Hz | 9Hz |
| Temperature Range | -20°C to 550°C | -40°C to 400°C |
| Temperature Accuracy | ±2°C or ±2% | |
