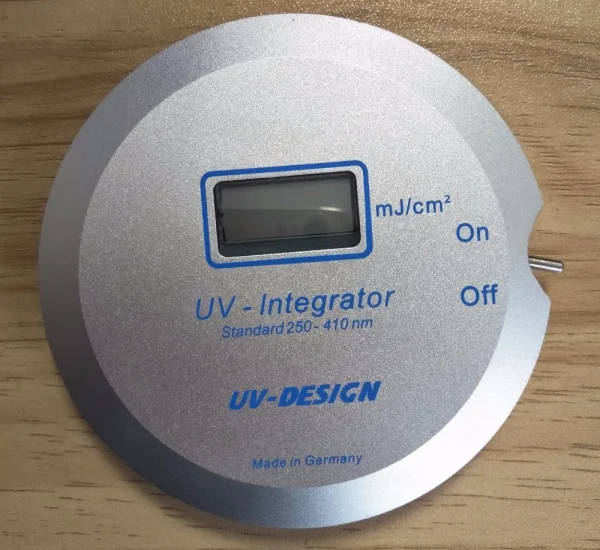

UV Integrator Energy Detector Meter
This UV energy meter is designed to measure the UV energy of various light sources, particularly in printing machines, to ensure optimal quality control during the printing and drying process.
Key Features
- Spectral range: 250-410 nm, with a peak spectral output of 365 nm
- Measures incident light and calculates relative energy values
- Compact design: 90mm diameter, 12mm height, weighing approximately 150g
- Applicable to various UV equipment, including drying machines, exposure machines, conveyor belts, UV lamps, and UV curing machines
Specifications
| Parameter | Value |
|---|---|
| Measuring range | 0-5000mW/cm² |
| Energy display | LCD, 0-999999mJ/cm² |
| Battery | Lithium battery, 3.6V |
| UV wavelength measurement range | 250-410nm, peak 365nm |
| Power consumption | approximately 10,000 hours (lithium battery) |
| Operating temperature | 0-70°C, with high temperature tolerance up to 100-110°C for no more than 10 seconds |
Using the UV Energy Meter
- Turn the switch to the ‘ON’ position; the display will show ‘0’ mJ/cm².
- Position the energy meter sensor window towards the UV light source for measurement.
- The instrument will record the UV energy upon exposure; read the energy value from the display screen.
- For new measurements, turn the instrument off and on again to reset the display to ‘0’ mJ/cm².
