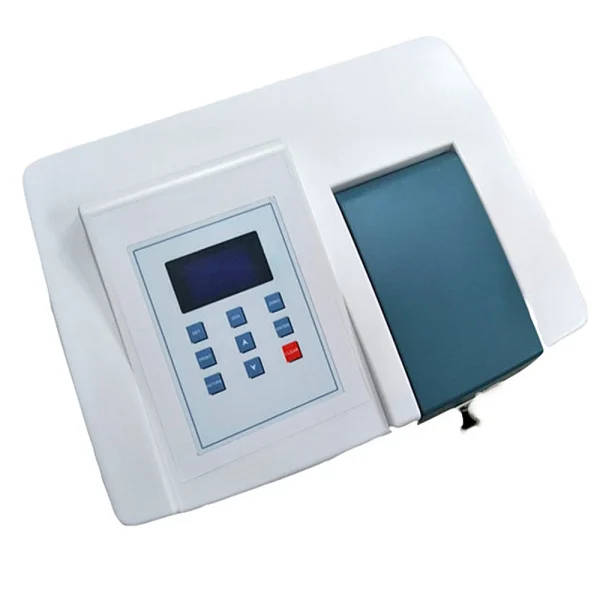

The UV1610 is a high-performance UV Visible Spectrophotometer designed for precise and reliable analysis. It features a unique optical system with a 1200 lines/mm grating and imported receiver, ensuring sound performance and accurate results.
Key Features of the UV Visible Spectrophotometer
Analysis Capabilities
Basic functions include Photometric analysis and Quantitative analysis. Expands applications with PC software: spectral scanning, kinetics, DNA/protein analysis, multi-wavelength test.
Data Storage and Light Source
Stores 200 test data and 100 standard curves. Plug-type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
Technical Specifications
| Specification | Value |
|---|---|
| Optical System | Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 190~1100nm |
| Spectral Bandwidth | 4 nm |
| Wavelength Accuracy | 1nm |
| Photometric Accuracy | 0.5%T |
| Photometric Repeatability | 0.3%T |
| Stray light | 0.3%T |
| Stability | ±0.002A/h @500nm |
| Baseline Flatness | ±0.002 A |
| Noise | ±0.001 A |
