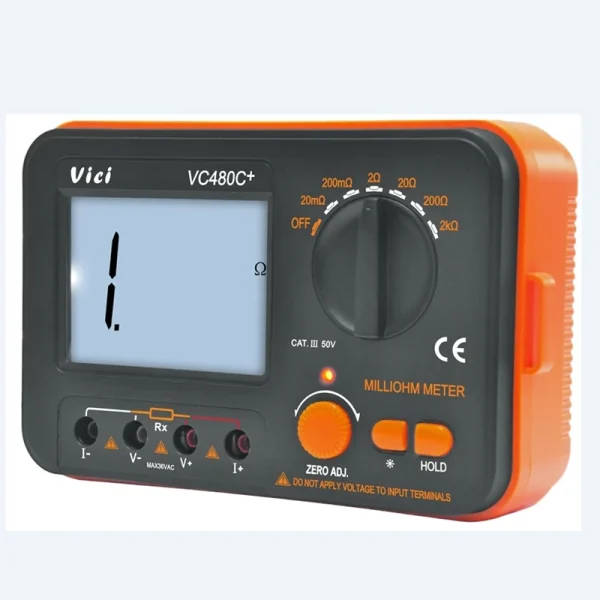

VICI VC480C+ Digital Milliohm Meter for Accurate Low Resistance Measurement
The VICI VC480C+ is a high-precision digital milliohm meter designed to accurately measure low resistance values, ensuring reliable results in various laboratory and educational settings. It features a large 3.5 digit LCD display and 4-wire test capability, providing precise measurements across six ranges from 0.01mΩ to 2kΩ.
Key Features for Enhanced Usability and Accuracy
- Clear 3.5 digit LCD display for easy reading of measurement results
- 4-wire test capability for accurate low resistance measurement, minimising lead resistance errors
- Six measurement ranges: 0.01mΩ to 2kΩ, catering to diverse experimental requirements
- HOLD key for data hold, allowing for convenient recording of measurements
- Backlit LCD for enhanced visibility in low-light environments, ensuring safe operation
- External power supply connection for continuous operation, ideal for prolonged experiments
- Strong anti-magnetic and anti-jamming functions, ensuring measurement integrity
- Full function protection, safeguarding the device against potential damage
Detailed Specifications
| Display | 3.5 digit LCD, 75 x 52mm |
| Measurement Range | 0.01mΩ to 2kΩ (6 ranges) |
| Sampling Rate | 3 times/sec |
| Operation Mode | Manual range selection for precise control |
| Power Source | 6 x 1.5V AAA batteries or external DC 9V power source, offering flexibility |
| Weight | 580g (excluding batteries) |
| Dimensions | 175 (L) x 116 (W) x 63 (D) mm |
