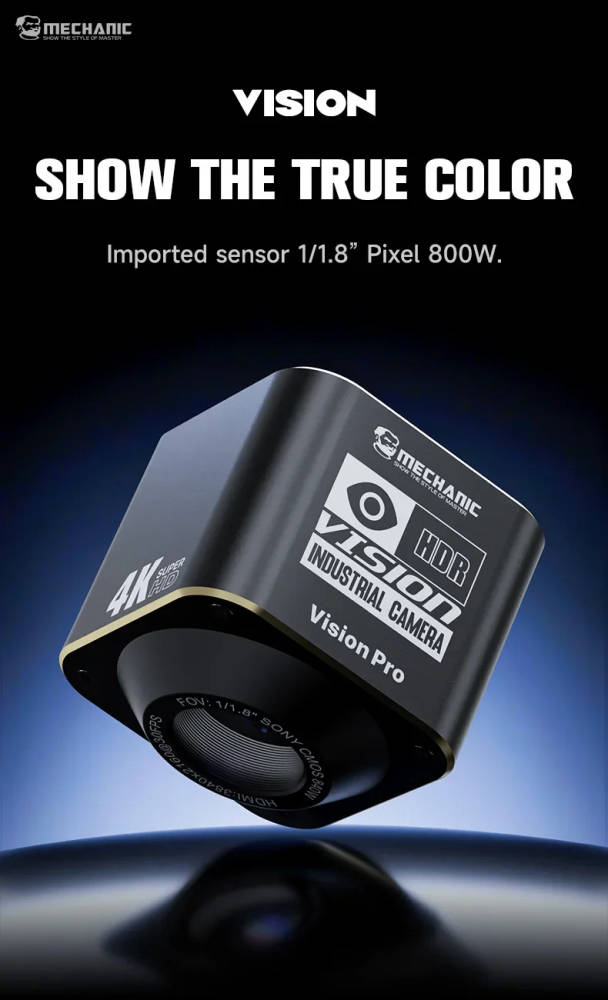

Mechanic Sony IMX678 4K HDMI USB Type-C Video Microscope Camera

Mechanic Sony IMX678 4K HDMI USB Type-C Video Microscope Camera - Image 2

Mechanic Sony IMX678 4K HDMI USB Type-C Video Microscope Camera - Image 3

Mechanic Sony IMX678 4K HDMI USB Type-C Video Microscope Camera - Image 4

Mechanic Sony IMX678 4K HDMI USB Type-C Video Microscope Camera

Name: Mechanic Sony IMX678 4K HDMI USB Type-C Video Microscope Camera
SKU: 1005009034415136
Availability: InStock

No reviews yet

(0 reviews)

Price range: £172.99 through £236.99 Inc VAT

& Free Delivery

This MECHANIC Sony IMX678 4K HDMI USB Type-C Video Microscope Camera features HDMI and USB Type C interfaces, delivering 60FPS ultra-high definition. It is ideal for scientific research, teaching, and industrial inspection.

Product ID: 52529

Get it Tuesday 20th Oct

Buying for a lab, school or business? Need a written quote or invoice? Add your required quantity to the basket, then choose Request quote & email invoice. View basket
A customer account is required for quote requests.

Elevate your precision work with the MECHANIC Sony IMX678 4K HDMI USB Type-C Video Microscope Camera. This 4K microscope industrial camera boasts a cutting-edge Sony sensor, providing exceptional picture quality. The camera features both HDMI and USB Type C interfaces, allowing for flexible connectivity options.

Key Features of the Video Microscope Camera

High Definition and Connectivity

The camera delivers 4K resolution via HDMI 4K output and features a USB Type C interface for seamless connectivity. It supports HDMI to Type C and USB Type C to HDMI conversion.

Technical Specifications

Specification	Value
Video Output Port	HDMI, USB
Operating Voltage	5V2A
Resolution	25601440 or 38402160
Material	Metal
Case Size	60mm60mm65mm
Video Output	YUV, MJPEG, H.264

Hign-concerned Chemical	None
Magnification Ratio	500X & Under
Drawtube	Trinocular
Material	Metal
Origin	Mainland China
Model Number	Mechanic Vision Pro 4K HD Industrial Microscope Camer
Brand Name	Mshiwi
Theory	Stereo Microscope
Is Smart Device	No
Features	High Definition,Handheld,Portable,Digital
Mshiwi Model	Hd1080p
Language Setting	Chinese,Traditional Chinese,English, German,French,Japanese,Russian,It
Video Output Port	HDMI, USB
Lens Port	C mount
Storage	U Disk
Operating Voltage	5V2A
Drive-free Protocol	Support
White Balance	Automatic, manual, one-key
Exposure Time (USB)	200us-33ms
Spectral Response(Wavelength)	380-720nm
Case Size	60mm60mm65mm

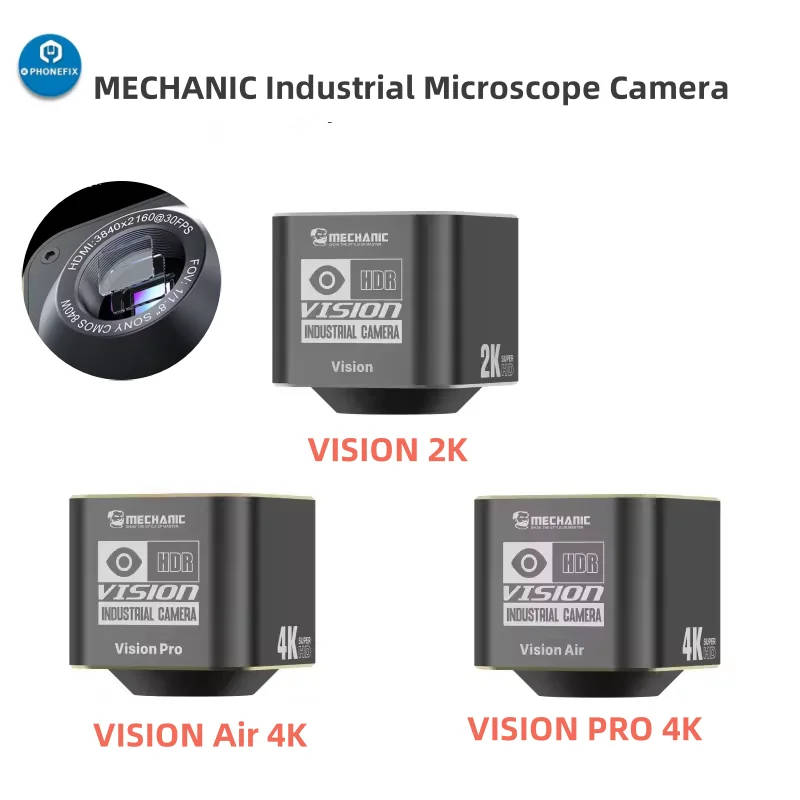

Model	Vision ,Vision Air ,Vision Pro
Image Sensor	IMX335 or IMX415 or IMX678
Video Output	YUV, MJPEG, H.264
Sensor Size	1/2.8 or 1/1.8
Pixel size	2.0 μm (H)x 2.0 μm (V) 1.45 μm (H) x 1.45 μm M)2.0 μm (H)x2.0 μm (M)
Resolution	25601440 or 38402160
Photo Resolution	500W , 800W
Video Recording	1080P
USB Output Resolution	19201080@60fps 19201080@60fps 3840*2160@30fps
Shutter Mode	Progressive Scan
USB Port	Type-C , Type-A
Usage	scientific research, teaching,industrial inspection and other scenario
