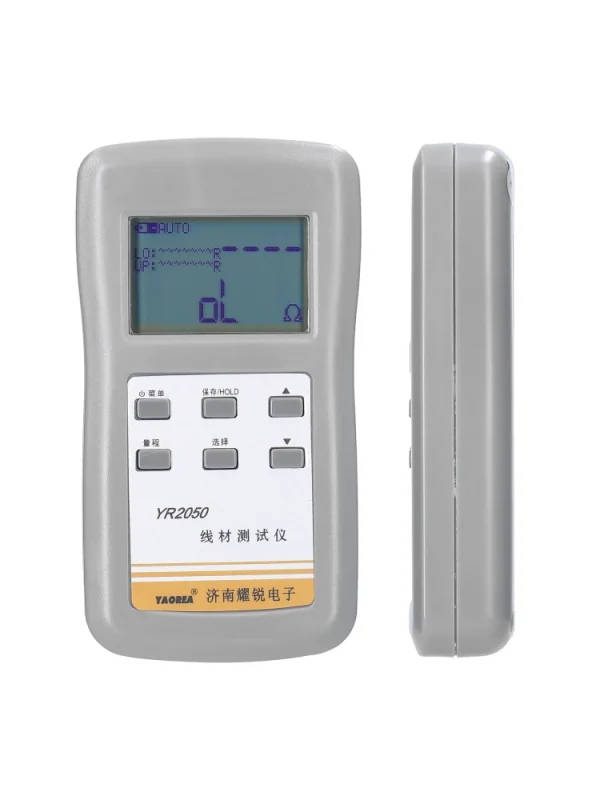

YR2050 DC Milliohm Meter – Precise Measurement for Laboratory and Industrial Applications
The YR2050 DC Milliohm Meter is a high-accuracy microhmmeter designed for precise measurement of low resistance values. It is ideal for testing wire length, resistivity, and assessing the quality of power cords used in motors and transformers.
Key Features
- 4-wire measurement technique for high accuracy
- Portable and compact design for easy transportation
- High resolution of 120,000 counts
- Protection against overcurrent with 0.5A fuse
- Easy to use interface for straightforward operation
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Plastics |
| Resolution | 120,000 |
| Protection Fusing Current | 0.5A |
| Working Temperature | 10°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Battery | 1 x Lithium Battery, 2000mAh (included) |
| Package Size | 120 x 60 x 40mm |
| Package Weight | 300g |
Safety Precautions
It is crucial to follow safety guidelines when using the YR2050 DC Milliohm Meter. Avoid measuring live parts or applying AC/DC voltage to the test interface, as this may damage the instrument.
Included Accessories
- 1 x Tester
- 1 x Test Clip
